Edwards Signaling

Sounders, 5531MHV Series

Item#  5531MHV-24AQ  - Adap High Vol 4 In 4 Out 24V Ac/Dc

• 113 dB at 10 Feet
• PLC Compatible
• 55 Tone Capability
• NEMA Type 3R
• UL; cUL; CE; TUV Approvals

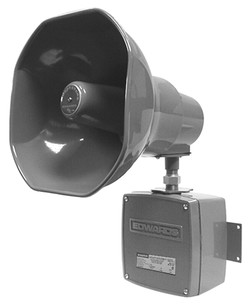

The Edwards 5531MHV Series Adaptatone Millennium is a high volume, 30 watt heavy duty industrial signaling device capable of producing volume"‘controlled, high"‘decibel tones. Four tones can be activated from field"‘wired, normally open contacts, or a 24 VDC or 120 VAC external voltage source such as the output of a PLC. Normally open contacts can be obtained from the Cat. No. 5538"‘4 and/or Cat. No. 5538"‘4R Adaptatone Signal Actuators.

The unit uses a microprocessor circuit to create 27 distinctive tones, selected by setting miniature dip switches within the unit. The tones programmed operate on a pyramid type priority system in which a switch with a programmed tone takes priority over all switches that follow it.

Designed for industrial applications including emergency warning systems, plant evacuation and security intrusion alarms, process monitoring, shift start and dismissal horns, and paging signals.

The 5531M is designed for either 1/2" (13mm) conduit or surface mounting.
