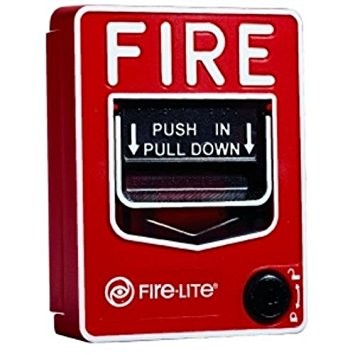

BG-12LX Addressable Manual Pull Station Spanish

The Fire ·Lite BG-12LX is a state-of-the-art, dual-action (i.e., requires two motions to activate the station) pull station that includes an addressable interface (mounted inside) for Fire ·Lite"™s addressable fire alarm control panels (FACPs) Because the BG-12LX is addressable, the control panel can display the exact location of the activated manual station. This leads fire personnel quickly to the location of the alarm.

Features

• Maintenance personnel can open station for inspection and address setting without causing an alarm condition.

• Built-in bicolor LED, which is visible through the handle of the station, flashes in normal operation and latches steady red when in alarm.

• Handle latches in down position and the word "œACTIVATED" appears to clearly indicate the station has been operated.

• Captive screw terminals wire-ready for easy connection to SLC loop (accepts up to 12 AWG/3.25 mm ² wire).

• Can be surface mounted (with SB-10 or SB-I/O) or semiflush mounted. Semi-flush mount to a standard singlegang, double-gang, or 4" (10.16 cm) square electrical box.

• Smooth dual-action design.

• Meets ADAAG controls and operating mechanisms guidelines (Section 4.1.3[13]); meets ADA requirement for 5 lb. maximum activation force.

• Highly visible.

• Attractive shape and textured finish.

• Key reset.

• Includes Braille text on station handle.

• Optional trim ring (BG12TR).

• Meets UL 38, Standard for Manually Actuated Signaling Boxes.

Construction

Shell, door, and handle are molded of durable polycarbonate material with a textured finish.

Specifications

• Shipping Weight: 9.6 oz. (272.15 g)

• Normal operating voltage: 24 VDC.

• Maximum SLC loop voltage: 28.0 VDC.

• Maximum SLC standby current: 375 μA.

• Maximum SLC alarm current: 5 mA.

• Temperature Range: 32 °F to 120 °F (0 °C to 49 °C)

• Relative Humidity: 10% to 93% (noncondensing)

• For use indoors in a dry location
