Fire Lite Alarms D355PL intel duct detector non relay

D355PL Detector

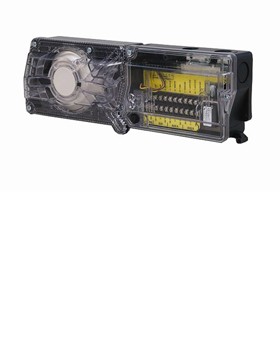

Fire-Lite's InnovairFlex D355PL non-relay photoelectric duct smoke detector features a pivoting housing that fits both square and rectangular footprints capable of mounting to a round or rectangular duct. The InnovairFlex duct smoke detector senses smoke in the most challenging conditions, operating in air flow speeds of 100 to 4,000 feet per minute, temperatures of -4 degrees F to 158 degrees F, and a humidity range of 0 to 95 percent (non-condensing).

D355PL Detector  Features and Benefits

• Photoelectric, integrated low-flow technology.
• Air velocity rating from 100 ft/min to 4,000 ft/min (0.5 m/s to 20.32 m/s).
• Versatile mounting options: square or rectangular configuration.
• Broad ranges for operating temperature (-4 °F to 158 °F, -20 °C to 70 °C) and humidity (0% to 95% non-condensing).
• Patented sampling tube installs from front or back of the detector with no tools required.
• Cover tamper signal.
• Easily accessible code wheels on sensor head (sold separately).
• Clear cover for convenient visual inspection.
• Remote testing capability.
• Accommodates the installation of an addressable relay module, sold separately, (CRF-300) for applications requiring a Form-C relay.
