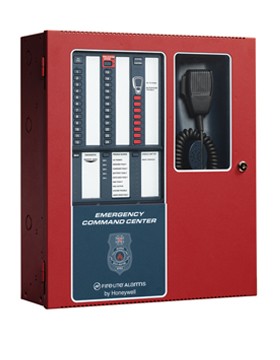

Fire Lite Alarms ECC-50/100 emergency command center 50wt

ECC-50/100

The ECC-50/100 are multipurpose emergency voice evacuation panels that may be used for fire applications, mass notification applications or both. These state-of the-art Primary Operator Console"™s (POC"™s) are capable of producing either 50 watts of audio power that can be distributed to up to eight speaker circuits (i.e., zones).

ECC-50/100  Features and Benefits

• UL Listed to UL2572 Communication (Control Units Mass Notification Systems).
• Modular design for maximum system flexibility and easy expansion.
• 50 watts of 25 V audio power (expandable to 100 watts) RMS.
• Optional amplifier can be configured as a backup in the event the primary amplifier fails. Amplifiers are independently powered to eliminate system interruption during a short circuit condition
• Eight Command Input Circuits to activate messages 1 to 8:
• Seamless integration and control when connected to select Fire-Lite panels through the ANN/ACS (EIA-485) communication bus.
• Speaker circuits are expandable by up to 8 outputs (With an optional circuit expander module).
• Removable terminal blocks for ease of servicing and module replacement.
• 2 amp Notification Appliance Circuit (NAC) output, sync generator, or follower for System Sensor, Wheelock or Gentex protocols:
• Integral supervised microphone.
• 520HZ square wave tones can be uploaded to ECC-50/100 to meet NFPA Low Frequency requirements
