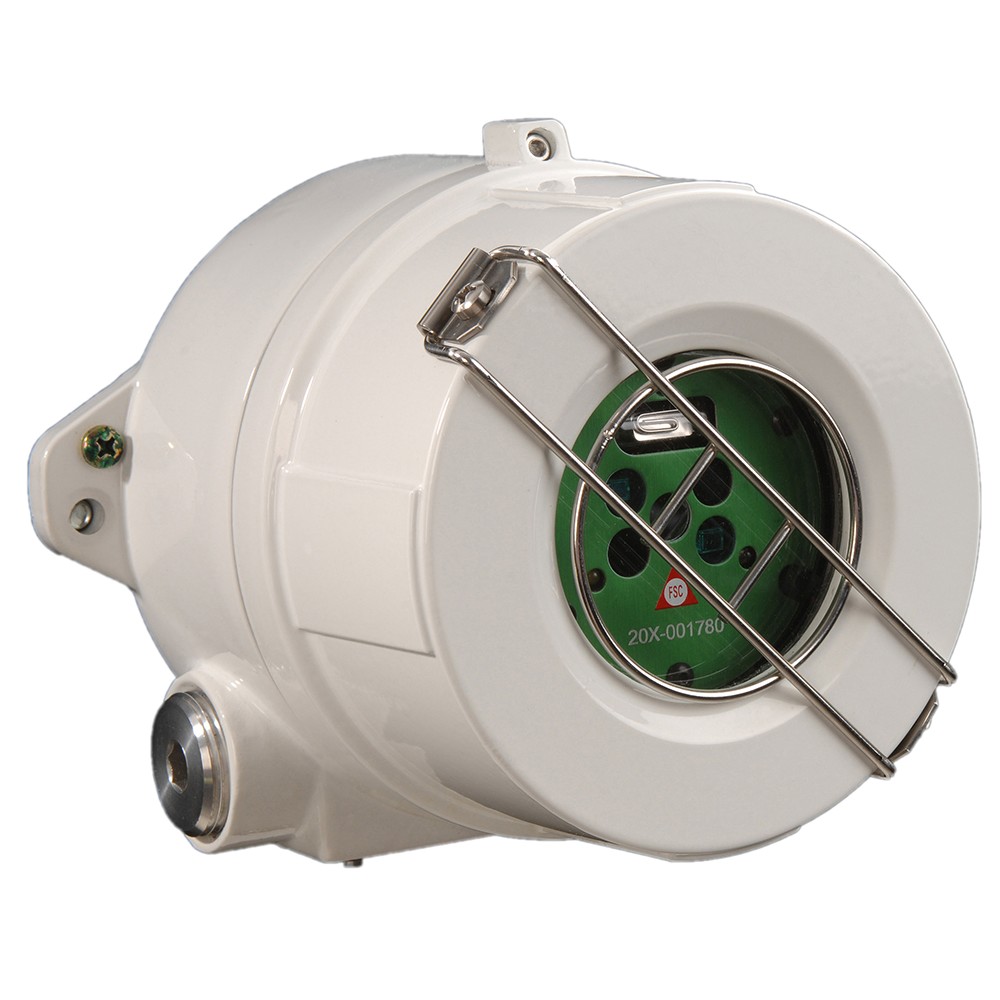

Fire Lite Alarms FS20X-211-21-2 dual ir/uv flame det class iii

FS20X-211-21-2

The Fire Sentry FS20X is the latest generation high technology MultiSpectrum (UV/Dual IR/VIS) Fire and Flame Detector, which is part of the FSX family of advanced technology Electro-Optical Flame detectors.   The Fire Sentry FS20X is a Multi-Spectrum and UV/Dual IR/VIS fire and flame detector with a proven UV solar-blind sensor. The Fire Sentry FS20X exhibits faster false-alarm free response to fires over a wider temperature range and with a much longer detection range compared to conventional UV/IR detectors.

Features

• Patented* WideBand IRâ„¢ Infrared combined with Ultraviolet

• Detection range greater than 200 feet to 1 sq. ft. heptane fire

• Patented* Electronic Frequency Analysis

• Visible Sensor for optimum false alarm rejection

• Selectable detection sensitivities

• Solar blind 90 ° full 100% cone-of-vision

• Dual Microprocessors for reliable performance

.• Real-time clock for accurate time dating of events

• FirePicâ„¢ "” Up to 6 pre-fire event data storage

• Event log "” Up to 200 events with date and time stamp

• Built-in RS-485 ModBus Communication

• Built-in non-isolated 4-20 mA analog output (sink or source)

• Alarm, Fault and Fire Verification relays.

• Automatic Optical Path and Electronic Self-Test

• Widest operating temperature range

• Patented* Electronics Module for components protection with plug-in terminations for easy field installation

• Two  ¾" NPT OR 25mm conduit entries

• Low power consumption

• High RFI and EMI immunity

• FM approved Benefits

• Detects hydrocarbon and non-hydrocarbon fuel fires in all environmental conditions

• Arc welding immunity

• False alarm rejection for all environmental conditions

• Minimal maintenance for trouble-free operation

• PC software and Interface Module (FSIM) for fault diagnostics real-time graphs (RTGs), and downloading of FirePicsâ„¢ and event log

• Suitable for a wide variety of applications Based on the foundation of the highly successful and reliable Fire Sentry SS4 detector, the Fire Sentry FS20X detector represents a quantum leap in integrating Infrared and Ultraviolet sensing technologies.
