Fire Lite Alarms LCD-80F 80 char annun f/9200ud/9600

LCD-80F

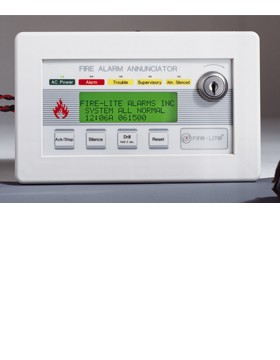

The LCD-80F is a compact, cost-effective, 80-character, backlit LCD remote Fire Annunciator for use with the Fire•Lite MS- 9200UD Series and MS-9600 Series Fire Alarm Control Panels (FACPs). The LCD-80F displays complete system point status information and includes control switches for remote control of critical system functions. Up to 32 LCD-80Fs may be connected onto the EIA-485 terminal port of each FACP. The LCD-80F requires no programming, which saves time during system commissioning.

Features:

• 80-character Liquid Crystal Display.

• Mimics all display information from the host panel.

• Control switches for System Acknowledge, Signal Silence, Drill and Reset with enable key.

• System status LEDs for Power, Alarm, Trouble, Supervisory and Alarm Silenced.

• No programming necessary "” LCD-80F connects to the terminal port (TB7) .

• Displays device type identifiers, individual point alarm, trouble or supervisory, zone and custom alpha labels.

• Time-and-date display field.

• Aesthetically pleasing design.

• May be powered from the host FACP or by remote power supply (requires 24 VDC).

• Up to 32 LCD-80F annunciators per FACP.

• Plug-in terminal blocks for ease of installation and service.

• Can be remotely located up to 6,000 feet (1828.8 m) from the FACP.

• Local piezo sounder with alarm and trouble resound.

• Semi-flush mounts to 2.188" (5.556 cm) minimum deep, three-gang electrical box (Fire•Lite PN 10103) or three-gangable electrical switchbox.

• Surface-mounts to Fire•Lite PN SBB-3 surface backbox.

Operation:

  The LCD-80F annunciator provides the FACP with point annunciation with full display text on an 80-character LCD display. The LCD-80F also provides an array of LEDs to indicate system status, and includes control switches for remote control of critical system functions. The LCD-80F provides the FACP with up to 32 remote serially connected annunciators. All field-wiring terminations on the LCD-80F use removable, compression-type terminal blocks for ease of wiring and circuit testing. Communication between the FACP and the annunciators is accomplished over an EIA-485 serial interface, which greatly reduces wire and installation cost over traditional systems. Six wires total are required: four for the EIA-485 communications (two in and two return); and two for the 24 VDC regulated power. Dip switches control local functions such as: piezo disable, control switches/key-switch disable, transmit/receive mode.
