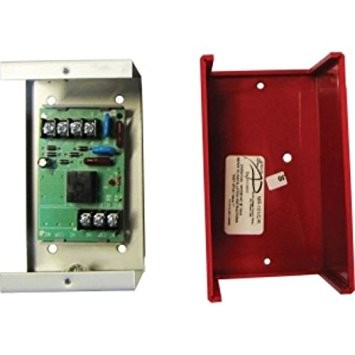

Fire Lite Alarms MR-101/T spdt relay track mount

Fire-Lite MR-101/T Single SPDT Relay with LED, Track Mounting Hardware

The FireLite MR-101/T is a 24VDC, MR Series Relay with SPDT (10A) contacts. A single relay may be energized from a voltage source or VAC by wiring to appropriate input terminals. The MR-101/T is equipped with track mounting hardware.

This device is perfectly suited for applications where local contacts are required for system status, remote contacts for control of electrical loads, and general purpose switching. Ideal for HVAC, Temperature Control, Fire Alarm, Security, Energy Management, and Lighting Control Systems.

Each relay position may be energized from one of four input control voltages

Each relay position contains a red LED which illuminates when the coil is energized

Single, dual, or triple relay modules may be "snapped apart" from a standard four-position master

Dust-proof metal enclosures

Red plastic cover

LED viewing port

Track mounting hardware to facilitate installation in standard cabinets

UL recognized relays rated at 10,000,000 mechanical operations
