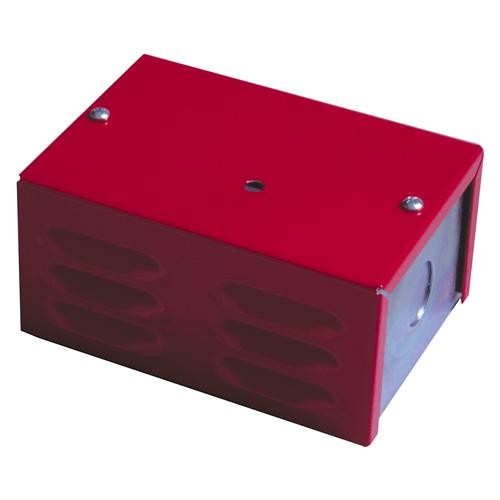

Fire Lite Alarms R-14E 4gang relay spdt metal enclosr

System Sensor R-14E 4-gang Relay with 4 Activation LEDs, SPDT

The R-14E is a multi-voltage relay with terminal strip field wiring connections, mounting track and hardware mounted in a steel enclosure. The closure has a removable front cover that provides easy access and a LED viewing hole on the top of the cover. The R-14E is a 4-gang 1 FORM C (SPDT) relay with 4 red LEDs.

Technical Specifications:

• Dimensions: 11"L x 5.3"W x 2.5"H
• Maximum Operating Current: 20 mA DC max. @ 24 VDC, 24 VAC, 115 VAC, 230 VAC
• Mounting: Steel enclosure
• Operating Humidity Range: 10 - 85% noncondensing
• Operating Temperature Range: -40F to 158F (-40C to 70C)
• Operating Voltage: 24 VDC, 24 VAC, 115 VAC, 230 VAC
